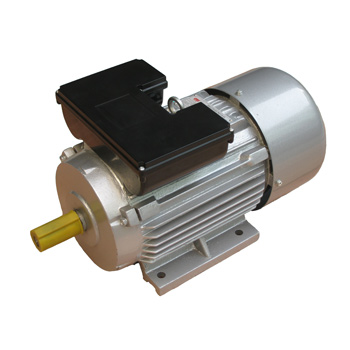

YL Series two-value capacitor Electric motor

Features :

Design voltage:220-250V,360-440V，620-720V Design frequency:50HZ,60HZ

Model	Rated power (W)	Rated power (HP)	Rated voltage (V)	Rated current (A)	Speed (r/min)	Efficency (η%)	Power Factor	Locked-rotor Curren	Locked-rotor Torque	Max Torque
Model	Rated power (W)	Rated power (HP)	Rated voltage (V)	Rated current (A)	Speed (r/min)	Efficency (η%)	Power Factor	Rated Current	Rated Torque	Rated Torque
YL7112	370	0.5	220	2.6	2800	67	0.94	5	1.8	1.8
YL7122	550	0.75	220	3.6	2800	70	0.94	5	1.8	1.8
YL7114	250	0.33	220	2.1	1400	60	0.9	6	1.8	1.8
YL7124	370	0.5	220	3	1400	62	0.9	6	1.8	1.8
YL8012	750	1	220	5.1	2800	72	0.92	6	1.8	1.8
YL8022	1100	1.5	220	7.02	2800	75	0.95	6	1.8	1.8
YL8014	550	0.75	220	4	1400	68	0.92	6	1.8	1.8
YL8024	750	1	220	5.2	1400	71	0.92	6	1.8	1.8
YL90S-2	1500	2	220	9.4	2800	76	0.95	5	1.7	1.8
YL90L-2	2200	3	220	13.4	2800	78	0.95	6	1.7	1.8
YL90S-4	1100	1.5	220	7.11	1400	74	0.95	5.5	1.7	1.8
YL90L-4	1500	2	220	9.44	1400	76	0.95	6	1.7	1.8
YL90S-6	550	0.75	220	4.44	910	60	0.94	5.5	1.7	1.7
YL90L-6	750	1	220	6	910	61	0.94	5.5	1.7	1.7
YL90L2-6	1100	1.5	220	8.3	910	64	0.94	5.5	1.7	1.7
YLX100L-2	3000	4	220	18.65	2800	77	0.95	6.5	1.6	1.7
YLX100L1-4	2200	3	220	13.85	1400	76	0.95	6.5	1.6	1.7
YLX100L2-4	3000	4	220	18.65	1400	77	0.95	6.5	1.6	1.7
YLX112M4	4000	5.5	220	24.55	1400	78	0.95	6.5	1.5	1.7
YLX112M2	4000	5.5	220	24.23	2800	79	0.95	6.5	1.5	1.7
YLX132S4	5500	7.5	220	33.8	1400	78	0.95	6.5	1.5	1.7
YLX132M4	7500	10	220	45.5	1400	79	0.95	6.5	1.5	1.7
YLX132S2	5500	7.5	220	33.3	2800	79	0.95	6.5	1.5	1.7
YLX132M2	7500	10	220	44.8	2800	80	0.95	6.5	1.5	1.7

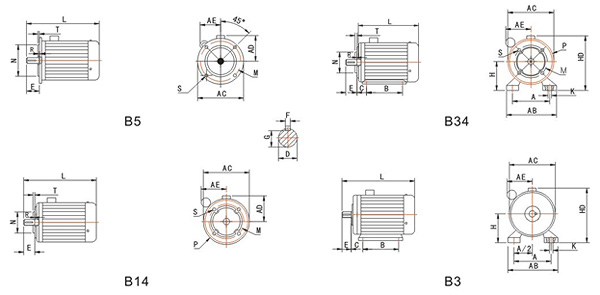

Frame Size	B3 Installation size (mm)										B34 Installation size (mm)						B3、B34 Dimension (mm)
Frame Size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AE	HD	L
50	80	40	63	32	9	20	3	7.2	50	5.8	55	40	70	0	M5	2.5	100	110	55	125	155
56	90	45	71	36	9	20	3	7.2	56	5.8	65	50	80	0	M5	2.5	115	120	65	135	170
63	100	50	80	40	11	23	4	8.5	63	7	75	60	90	0	M5	2.5	130	130	70	165	230
71	112	56	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	145	145	95	180	255
80	125	62.5	100	50	19	40	6	15.5	80	10	100	80	120	0	M6	3	160	165	110	200	295
90S	140	70	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	180	185	120	220	310
90L	140	70	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	180	185	120	220	355
100	160	80	140	63	28	60	8	24	100	12	130	110	155	0	M8	4	205	200	130	260	430
112	190	95	140	70	28	60	8	24	112	12	130	110	160	0	M8	4	245	250	140	300	455
132S	216	108	140	89	38	80	10	33	132	12	165	130	200	0	M10	4	280	290	155	350	525
132M	216	108	178	89	38	80	10	33	132	12	165	130	200	0	M10	4	280	290	155	350	565

Frame Size	Axis Extension Size (mm)				B14 Installation size (mm)						B14 Overall Dimension(mm)				B5 Installation size (mm)						B5 Overall Dimension(mm)
Frame Size	D	E	F	G	M	N	P	R	S	T	AC	AD	AE	L	M	N	P	R	S	T	AC	AD	AE	L
50	9	20	3	7.2	55	40	70	0	M5	2.5	110	75	55	155	-	-	-	-	-	-	110	75	60	155
56	9	20	3	7.2	65	50	80	0	M5	2.5	120	80	65	170	-	-	--	-	-	-	120	80	75	170
63	11	23	4	8.5	75	60	90	0	M5	2.5	130	100	70	230	115	95	140	0	10	3	130	100	85	230
71	14	30	5	11	85	70	105	0	M6	2.5	145	110	95	255	130	110	160	0	10	3.5	145	110	95	255
80	19	40	6	15.5	100	80	120	0	M6	3	165	120	110	295	165	130	200	0	12	3.5	175	120	110	300
90S	24	50	8	20	115	95	140	0	M8	3	185	130	120	310	165	130	200	0	12	3.5	185	130	120	335
90L	24	50	8	20	115	95	140	0	M8	3	185	130	120	335	165	130	200	0	12	3.5	185	130	120	360
100	28	60	8	24	130	110	155	0	M8	4	200	180	130	430	215	180	250	0	15	4	220	180	130	430
112	28	60	8	24	130	110	160	0	M8	4	250	190	140	455	215	180	250	0	15	4	250	190	140	455
132S	38	80	10	33	165	130	200	0	M10	4	290	210	155	525	265	230	300	0	15	4	290	210	155	525
132M	38	80	10	33	165	130	200	0	M10	4	290	210	155	565	265	230	300	0	15	4	290	210	155	565
