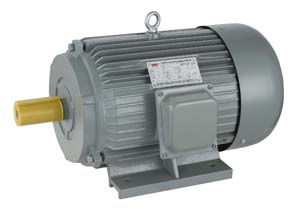

Y Series 8-pole & 10-pole three-phase asynchronous motor
Features :
Model Rated power
(KW)		 Rated power
(HP)		 Rated voltage
(V)		 Rated current
(A)		 Speed
(r/min)		 89Efficency
(¦Ç%)		 Power Factor Locked-rotor Curren 7Locked-rotor Torque 1Max Torque
Rated Current Rated Torque Rated Torque
Y80M1-2 0.75 1 220/380 1.8 2800 73 0.84 7 2.2 2.3
Y80M2-2 1.1 1.5 220/380 2.5 2800 76 0.86 7 2.2 2.3
Y90S-2 1.5 2 220/380 2.5 2800 76 0.86 7 2.2 2.3
Y90L2-2 2.2 3 220/380 3.4 2800 79 0.85 7 2.2 2.3
Y100L-2 3 4 220/380 6.4 2850 82 0.86 7 2.2 2.3
Y112M-2 4 5.5 380/660 8.2 2890 85 0.87 7 2.2 2.3
Y132S1-2 5.5 7.5 380/660 11.1 2900 85 0.88 7 2 2.3
Y132S2-2 7.5 10 380/660 15 2900 86 0.88 7 2 2.3
Y160M1-2 11 15 380/660 21.8 2930 87 0.88 7 2 2.3
Y160M2-2 15 20 380/660 29.4 2930 88 0.88 7 2 2.3
Y160L-2 18.5 25 380/660 35.5 2930 89 0.89 7 2 2.3
Y180M-2 22 30 380/660 42.2 2940 89 0.89 7 2 2.2
Y200L1-2 30 40 380/660 56.9 2950 90 0.89 7 2 2.2
Y200L2-2 37 50 380/660 70.4 2950 90.5 0.89 7 2 2.2
Y225M-2 45 60 380/660 83.9 2970 91.5 0.89 7 2 2.2
Y250M-2 55 75 380/660 102.7 2970 91.4 0.89 7 2 2
Y280S-2 75 100 380/660 140.1 2970 91.4 0.89 7 2 2.2
Y280M-2 90 125 380/660 167 2970 92 0.89 7 2 2.2
Y315S-2 110 150 380/660 195.1 2980 94 0.91 7.1 1.8 2.2
Y315M-2 132 180 380/660 231.6 2980 94.5 0.91 7.1 1.8 2.2
Y315L1-2 160 220 380/660 279.6 2980 94.6 0.92 7.1 1.8 2.2
Y315L2-2 200 270 380/660 347.7 2980 94.8 0.92 7.1 1.8 2.2
Y355M-2 250 340 380/660 433 2980 95.3 0.92 7.1 1.6 2.2
Y355L-2 315 430 380/660 544 2980 95.6 0.92 7.1 1.6 2.2
Y80M1-4 0.55 0.75 220/380 1.5 1400 70 0.76 6.5 2.4 2.3
Y80M2-4 0.75 1 220/380 2 1400 72 0.76 6.5 2.3 2.3
Y90S-4 1.1 1.5 220/380 2.8 1400 78 0.78 6.5 2.3 2.3
Y90L-4 1.5 2 220/380 3.7 1440 79 0.79 6.5 2.2 2.3
Y100L1-4 2.2 3 220/380 5 1420 81 0.82 7 2.2 2.3
Y100L2-4 3 4 220/380 6.8 1420 82 0.81 7 2.2 2.3
Y112M-4 4 5.5 380/660 8.8 1440 84 0.82 7 2.2 2.3
Y132S-4 5.5 7.5 380/660 11.6 1440 85 0.84 7 2.2 2.3
Y132M-4 7.5 10 380/660 15.4 1440 88 0.84 7 2.2 2.3
Y160M-4 11 15 380/660 22.6 1460 87 0.85 7 2.2 2.3
Y160L-4 15 20 380/660 30.3 1460 88 0.84 7 2.2 2.3
Y180M-4 18.5 25 380/660 35.9 1470 88 0.85 7 2.2 2.3
Y180L-4 22 30 380/660 42.5 1470 91 0.86 7 2 2.2
Y200L-4 30 40 380/660 56.8 1470 91.5 0.86 7 2 2.2
Y225S-4 37 50 380/660 69.8 1460 92.2 0.87 7 1.9 2.2
Y225M-4 45 60 380/660 84.2 1470 91.8 0.87 7 1.9 2.2
Y250M-4 55 75 380/660 102.5 1470 92.3 0.88 7 2 2.2
Y280S-4 75 100 380/660 139.7 1470 92.6 0.88 7 1.9 2.2
Y280M-4 90 125 380/660 164.4 1480 92.7 0.88 7 1.9 2.2
Y315S-4 110 150 380/660 200.2 1480 93.5 0.88 6.9 1.8 2.2
Y315M-4 132 180 380/660 239.1 1480 94.5 0.88 6.9 2.1 2.2
Y315L1-4 160 220 380/660 288 1480 94.8 0.88 6.9 2.1 2.2
Y315L2-4 200 270 380/660 358.9 1480 94.9 0.89 6.9 2.1 2.2
Y355M-4 250 340 380/660 443 1480 95 0.89 6.9 2.1 2.2
Y355L-4 315 430 380/660 556 1490 95.3 0.9 6.9 2.1 2.2
Y90S-6 0.75 1 200/380 2.3 1490 95.6 0.9 6.9 2.1 2.2
Y90L-6 1.1 1.5 200/380 3.2 1490 72 0.7 6.9 2 2.2
Y100L-6 1.5 2 200/380 4 1490 73 0.72 6.9 2 2.2
Y112M-6 2.2 3 200/380 5.6 1490 77 0.74 6.9 2 2.2
Y132S-6 3 4 200/380 7.2 910 80 0.74 6.9 2 2.2
Y132M1-6 4 5.5 380/660 9.4 910 83 0.76 6 2 2.2
Y132M2-6 5.5 7.5 380/660 12.6 940 84 0.77 6 2 2.2
Y160M-6 7.5 10 380/660 17 940 89.5 0.81 6 2 2.2
Y160L-6 11 15 380/660 24.6 960 89.5 0.81 6 2 2
Y180L-6 15 20 380/660 31.5 960 90.2 0.83 6.5 1.8 2
Y200L1-6 18.5 25 380/660 37.7 960 90.2 0.83 6.5 1.8 2
Y200L2-6 22 30 380/660 44.6 970 90.8 0.83 6.5 1.8 2
Y225M-6 30 40 380/660 59.5 970 90.2 0.85 6.5 1.7 2
Y250M-6 37 50 380/660 72 970 90.8 0.86 6.5 1.8 2
Y280S-6 45 60 380/660 85.4 970 92 0.87 6.5 1.8 2
Y280M-6 55 75 380/660 104.9 970 91.6 0.87 7 1.8 2
Y315S-6 75 100 380/660 140.2 980 93.5 0.86 7 2 2
Y315M-6 90 125 380/660 167 980 93.8 0.86 7 2 2
Y315L1-6 110 150 380/660 202.3 980 94 0.86 6.7 2 2
Y315L2-6 132 180 380/660 242.3 980 94.2 0.87 6.7 1.9 2
Y6Y355M1-6 160 220 380/660 292 990 94.5 0.87 6.7 1.9 2
Y335M2-6 200 270 380/660 365 990 94.7 0.88 6.7 1.9 2
Y355L-6 250 340 380/660 455 990 94.9 0.88 6.7 1.9 2
